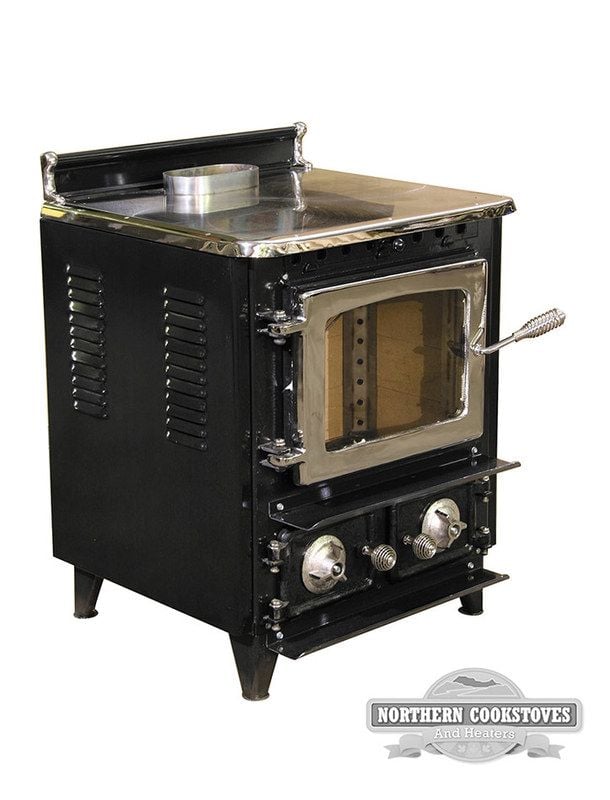

The Flame View Heater by Margin Stoves Ltd.
Because of its small size, the The Flame View Heater by Margin Stoves Ltd. is the perfect wood burning heater for home or cottage use. The glass viewing door enhances its comforting aethestic, making it an ideal conversation piece in any space.
Plus, optional accessories are available to transform this wood stove heater into a wood burning stove for cooking and heating. Flame View Wood Burning Heaters use an exclusive "air-jet" re-burn design system. The re-burn system re-burns gases and smoke before exiting the exhaust into the atmosphere.Margin Stoves are all custom built to suit your needs and fit your budget. To get started, you will need to decide if you want your stove to have a shelf or warming oven above the cook top. Next, you will need to decide on the color. Black is the factory standard color, but white and almond are also available as options.
- 2000 SQ. FT. Heating Capacity
- Large viewing glass
- Dual draft inlet for glass wash and easy start-up
- Accepts logs that are 11" diameter X 22".
- Cast iron grating system.
- Double plated steel cook top.
- Exclusive "Air-jet" re-burn design
- Large ash trays.
- Black porcelain exterior finish
- Black porcelain oven interior
- Oven draft control.
- Lid lifter, poker and ash scraper.
Limited 1 year warranty

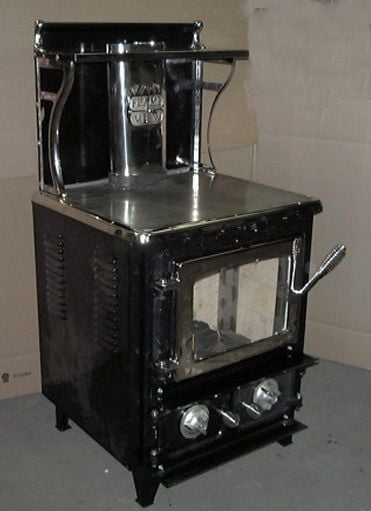

The standard black stove includes a back splash with shelf.

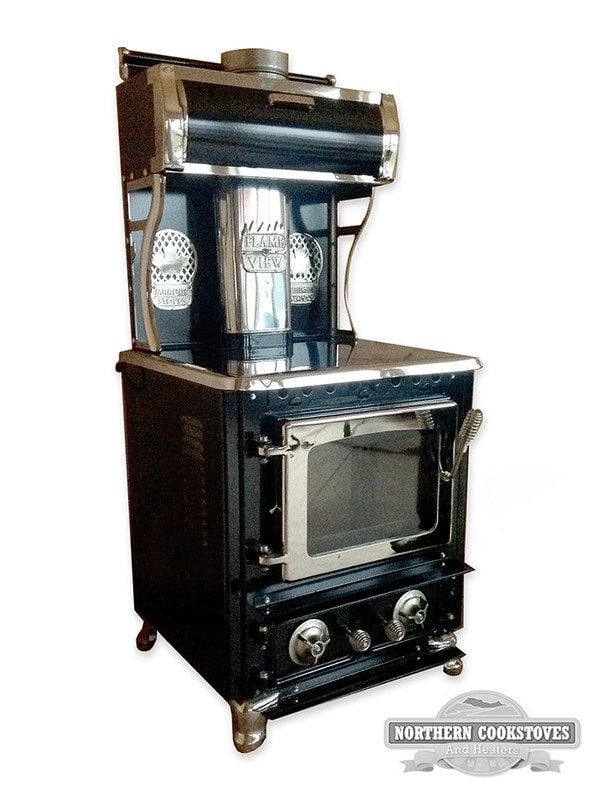

Black-Full warming oven
The standard black stove includes back splash with warming oven.
- Black with nickel trim

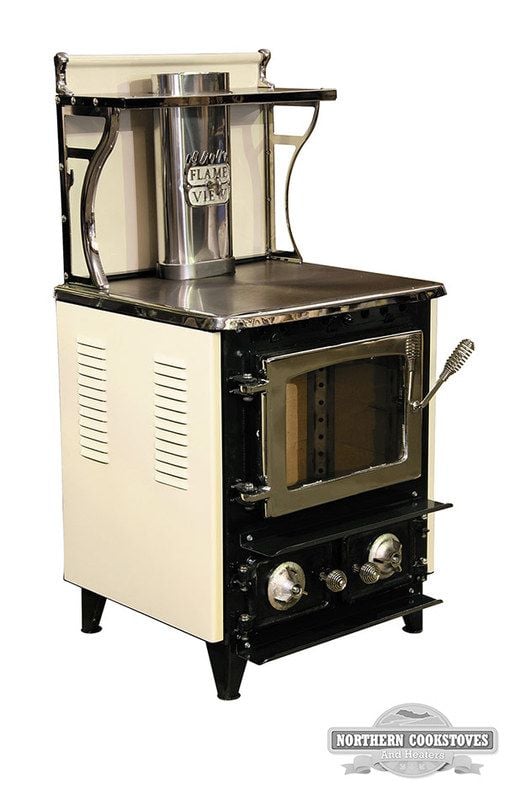

- Almond with Nickel trim
- White with Nickel trim
- Black with Black trim.
Wood Stove Installation Guidelines
Click the below link to download a copy of wood stove installation guidelines.
|HEIGHT TO COOKING SURFACE||34.5"|
|COOKING TOP||23" x 27"|
|FIRE BOX||22" L x 12" W x 18" D|
|HEATING CAPACITY||1,800 Sq.Ft.|
|SHIPPING WEIGHT||550 lbs|
|SAFETY TESTED||ULC-S627 UL-1482|
|CLEARANCES TO COMBUSTIBLES|
|BACK WALL TO UNIT||14"|
|SIDE WALL TO UNIT||12"|
|FUEL DOOR TO SIDEWALL||48"|
|BACK WALL TO PIPE||15"|
|SIDE WALL TO PIPE||23"|
Fire Box Water Jacket
In place of the firebrick, a water jacket can be installed during the manufacturing process to supplement hot water needs in your home. Your stove can plumb directly into your home's hot water system, and then water can be circulated to your hot water heater and stored; this will take the strain off your utility usage and save you money. The Water Jacket does not affect the size dimensions of the firebox. One or two wall jackets are available.
This mechanical control is a spring coil that expands when warm and contracts when cool. When the room temperature drops, the coil spring shrinks and opens the door at the back of the stove to allow oxygen to the flame, which creates more heat. The opposite works when the room temperature is too high. The coil spring expands and, in turn closes the door to restrict oxygen to the flame, which cools the stove.
Electric Fan and Control
The electric fan is a option for people who want a touch of history and modernization in the their home. The electric fan is mounted on the back of the stove and pushes hot air through the vents on the side and front of the stove.
An excellent option to dress up your stove and give it a rich look.
Maple Leaf trivets
In the past, trivets were used for warming butter. They are made from cast iron and plated with nickel. They are located on the back splash of the stove and make nice ornamental pieces that add character to the stove.
12 Gallon Rear Mount Reservoir
This is for the serious hot water user. This stainless steel tank is mounted on the back of the stove. This hot water can be plumbed into an exchanger in your hot air duct on your furnace, that air can then be circulated through your entire home to assist in even, hot air distribution.
Right hand fire Door
We can even accommodate the door swing to fit your needs. Left hand swing is standard.
14 inch bake oven
A standard oven size for stove is 13 inches. We can give this extra height in the oven if needed
Unit must be placed on non-combustibles like 3/8 mill board extending 18 inches past the front of the stove and 8 inches past the sides and rear. All unit installations must comply with W.E.T.T. Regulations.
